| Brand Name : | JINZHOU SHITAN |
| Model Number : | GK -180 |

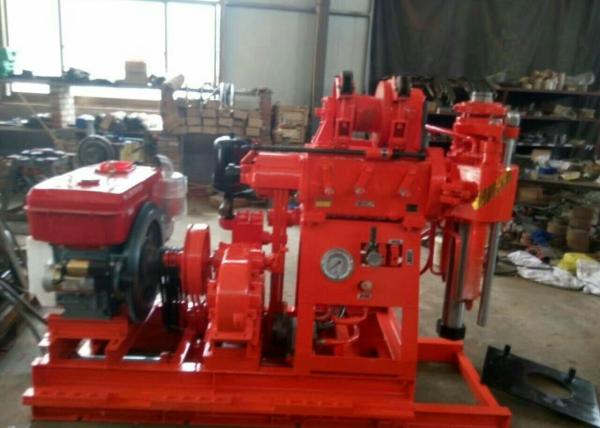

GK-180 Drilling rig with hydraulic feeding id widely utilized and featured in high power and hoisting load(2 T), large orques transmission, etc. The rotating speed of vertical hexagonal spindle varies between 71 r/min-825 r/min. It is suited for geo tectnic survey, geological core drilling, small hole drilling for grut, blast and water well in railway, water conservancy, bridge, dam foundation and other constructions. Diamond drill it, alloy drill bit and steel roller drill bit are available for drilling according to different geological structures.
Water Drilling Machine Distinguishing Feature
Water Drilling Machine Data
| GK-180 Drilling rig | |
| Drilling depth | 180m |
| Drill rod caliber | 42mm |
| Hole diameter | 75mm |
| Drilling angle | 90°-75° |
| Dimensions | 2120*875*1480mm |
| Weight(without power unit) | 750kg |
| Swivel head | |
| Spindle speed | 71,182,310,790r/min |
| Spindle stroke | 450mm |
| Upward displacement speed of idling vertical spindle | 0.05m/s |
| Downward displacement speed of idling vertical spindle | 0.067m/s |
| Spindle pull-down max. | 15KN |
| Spindle lifting capacity max. | 25KN |
| Spindle max.torque | 1.5KN.m |
| Brake diameter | 278mm |
| Brake belt width | 50mm |
| Hoist | |
| Max. lifting capacity | 20KN |
| Hoisting drum revolution | 20,39,85,170r/min |
| Drum diameter | 140mm |
| Wire rope diameter | 9.3mm |
| Wire rope capability | 40m |
| Oil pump | |
| Model | YBC-20/125 |
| Rated presure | 12.5Mpa |
| displacement | 20ml/r |
| rated speed | 800-2500r/min |
| Water pump | |
| Displacement max. | 95(77)L/min |
| Working pressure max. | 1.2Mpa |
| Rated pressure | 0.7Mpa |
| Liner diameter | 80mm |
| Piston stroke | 100mm |
| Power(diesel engine or motor) | |
| Rated power | 16.2KW |
| Rated speed | 2200r/min |
| Electric motor | Y160M-4 |
| Rated power | 11Kw |
| Rated speed | 1460r/min |
|
|
